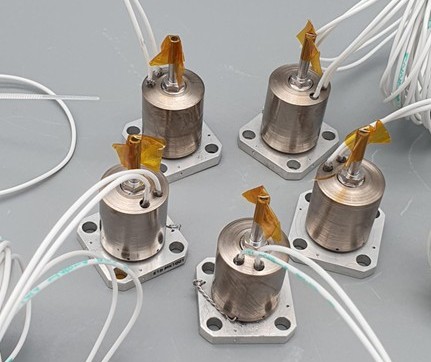

Your product family for a majority of fluid control applications. Mono & bi-stable.
| Differential Pressure | up to 400 bar |
| Operating Pressure | up to 400 bar |
| Temperature range | 233K – 343K (application dependent) Optional: 77K – 343K |
| Effective flow diameter | 0.5 mm – Kv 0.006 m³/h |
| Normal state | Normally closed |
| Weight | 70 g |
| Dimensions | 27 x 27 x 63mm |
| Opening/closing time | <15ms (application dependent) |
| Media | Inert media, Hydrocarbons, H2, O2 Optional: Storables, N2O, HTP (short term) |
| Maturity | TRL 7 |
| Lead times | Starting at 10 weeks from order intake (batch size dependent) |
| Differential Pressure | up to 400 bar |
| Operating Pressure | up to 400 bar |
| Temperature range | 233K – 343K (application dependent) Optional: 77K – 343K |
| Effective flow diameter | 1 mm – Kv 0.04 m³/h |
| Normal state | Normally closed |
| Weight | 180 g |
| Dimensions | 34 x 34 x 57mm |
| Opening/closing time | <35ms (application dependent) |
| Media | Inert media, Hydrocarbons, H2, O2 Optional: Storables, N2O, HTP (short term) |
| Maturity | TRL 5 |
| Lead times | Starting at 10 weeks from order intake (batch size dependent) |
| Differential Pressure | up to 70 bar |
| Operating Pressure | up to 70 bar |
| Temperature range | 233K – 343K (application dependent) |
| Effective flow diameter | 1 mm – Kv 0.04m³/h |
| Normal state | Normally closed |
| Weight | 52 g |
| Dimensions | 27 x 27 x 47mm |
| Interfaces | 1/8 “ tube + flange OR 2 x 1/8” tube, adaptable |
| Opening/closing time | <15ms (application dependent) |
| Media | Inert media, Hydrocarbons, H2, O2 Optional: Storables, N2O, HTP (short term) |
| Maturity | TRL 7 |
| Lead times | Starting at 10 weeks from order intake (batch size dependent) |
| Differential Pressure | up to 400 bar |
| Operating Pressure | up to 400 bar |
| Temperature range | 253K – 373K (application dependent) |
| Effective flow diameter | 1 mm – Kv 0.03m³/h |
| Normal state | Bi-stable |
| Weight | 160 g |
| Dimensions | 34 x 34 x 71mm |
| Opening/closing time | <35ms (application dependent) |
| Media | Inert media, Hydrocarbons, H2, O2 Optional: Storables, N2O, HTP (short term) |
| Maturity | TRL 4 |
| Lead times | Starting at 10 weeks from order intake (batch size dependent) |
| Differential Pressure | up to 100 bar |
| Operating Pressure | up to 240 bar |
| Temperature range | 233K – 343K (application dependent) Optional: 77K – 343K |
| Effective flow diameter | 2 mm – Kv 0.11m³/h |
| Normal state | Normally closed |
| Weight | 180 g |
| Dimensions | 34 x 34 x 42mm |
| Opening/closing time | <35ms (application dependent) |
| Media | Inert media, Hydrocarbons, H2, O2 Optional: Storables, N2O, HTP (short-term) |
| Maturity | TRL 6 |
| Lead times | Starting at 10 weeks from order intake (batch size dependent) |
| Differential Pressure | up to 70 bar |
| Operating Pressure | up to 240 bar |
| Temperature range | 233K – 373K (application dependent) Optional: 77K – 373K |
| Effective flow diameter | 2 mm – Kv 0.08m³/h |
| Normal state | Normally closed |
| Weight | 160 g |
| Dimensions | 34 x 34 x 72mm |
| Opening/closing time | <50ms (application dependent) |
| Media | Inert media, Hydrocarbons, H2, O2 Optional: Storables, N2O, HTP (short-term) |
| Maturity | TRL 6 |
| Lead times | Starting at 10 weeks from order intake (batch size dependent) |
| Differential Pressure | up to 70 bar |
| Operating Pressure | up to 70 bar |
| Temperature range | 253K – 343K (application dependent) |
| Effective flow diameter | 2 mm – Kv 0.08m³/h |
| Normal state | Bi-stable |
| Weight | 160 g |
| Dimensions | 34 x 34 x 71mm |
| Opening/closing time | <30ms (application dependent) |
| Media | Inert media, Hydrocarbons, H2, O2 Optional: Storables, N2O, HTP (short-term) |
| Maturity | TRL 5 |
| Lead times | Starting at 10 weeks from order intake (batch size dependent) |
| Differential Pressure | up to 300 bar |
| Operating Pressure | up to 300 bar |
| Temperature range | 233K – 343K (application dependent) |
| Effective flow diameter | 3 mm – Kv 0.21m³/h |
| Normal state | Normally closed |
| Weight | 190 g |
| Dimensions | 34 x 34 x 62mm |
| Opening/closing time | <50ms (application dependent) |
| Media | Inert media, Hydrocarbons, H2, O2 Optional: Storables, N2O, HTP (short-term) |
| Maturity | TRL 5 |
| Lead times | Starting at 10 weeks from order intake (batch size dependent) |
| Differential Pressure | up to 52 bar |
| Operating Pressure | up to 52 bar |
| Temperature range | 253K – 373K (application dependent) Optional: 77K – 373K |
| Effective flow diameter | 3 mm – Kv 0.17m³/h |
| Normal state | Normally closed |
| Weight | 180 g |
| Dimensions | 34 x 42 x 45mm |
| Opening/closing times | <30ms (application dependent) |
| Media | Inert gases, Hydrocarbons, H2, O2 Optional: Storables, N2O, HTP (short-term) |
| Maturity | TRL 5 |
| Lead times | Starting at 10 weeks from order intake (batch size dependent) |
| Differential Pressure | up to 100 bar |
| Operating Pressure | up to 100 bar |
| Temperature range | 233K – 343K (application dependent) Optional: 77K – 343K |
| Effective flow diameter | 4 mm – Kv 0.65m³/h |
| Normal state | Normally closed |
| Weight | 1200 g |
| Dimensions | 63 x 63 x 92mm |
| Opening/closing time | <100ms (application dependent) |
| Media | Inert gases, Hydrocarbons, H2, O2 Optional: Storables, N2O, HTP (short-term) |
| Maturity | TRL 6 |
| Lead times | Starting at 10 weeks from order intake (batch size dependent) |
| Differential Pressure | up to 100 bar |
| Operating Pressure | up to 100 bar |
| Temperature range | 233K – 343K (application dependent) Optional: 77K – 343K |
| Effective flow diameter | 4 mm – Kv 0.5m³/h |
| Normal state | Closed |
| Weight | 450 g |
| Dimensions | 48 x 48 x 56mm |
| Opening/closing time | <50ms (application dependent) |
| Media | Inert gases, Hydrocarbons, H2, O2 Optional: Storables, N2O, HTP (short-term) |
| Maturity | TRL 5 |
| Lead times | Starting at 10 weeks from order intake (batch size dependent) |
| Differential Pressure | up to 30 bar |
| Operating Pressure | up to 30 bar |
| Temperature range | 253K – 343K (application dependent) |
| Effective flow diameter | 4 mm – Kv 0.56m³/h |
| Normal state | Bi-stable |
| Weight | 520 g |
| Dimensions | 45 x 45 x 77mm |
| Opening/closing time | <60ms (application dependent) |
| Media | Inert media, Hydrocarbons, H2, O2 Optional: Storables, N2O, HTP (short-term) |
| Maturity | TRL 5 |
| Lead times | Starting at 10 weeks from order intake (batch size dependent) |
| Differential Pressure | up to 35 bar |
| Operating Pressure | up to 95 bar |
| Temperature range | 253K – 343K (application dependent) |
| Effective flow diameter | 12.2 mm – Kv 5.9 m³/h |
| Normal state | Normally closed |
| Weight | 1100 g |
| Dimensions | 90 x 120 x 65mm |
| Opening/closing time | <100ms (application dependent) |
| Media | Inert media, Hydrocarbons, H2, O2 Optional: Storables, N2O, HTP (short term) |
| Maturity | TRL 5 |
| Lead times | Starting at 10 weeks from order intake (batch size dependent) |
| Differential Pressure | up to 30 bar |
| Operating Pressure | up to 30 bar |
| Temperature range | 253K – 343K (application dependent) |
| Effective flow diameter | 4 mm – Kv 0.56m³/h |
| Normal state | Bi-stable |
| Weight | 520 g |
| Dimensions | 45 x 45 x 77mm |
| Opening/closing time | <60ms (application dependent) |
| Media | Inert media, Hydrocarbons, H2, O2 Optional: Storables, N2O, HTP (short-term) |
| Maturity | TRL 5 |
| Lead times | Starting at 10 weeks from order intake (batch size dependent) |
| Pressure | 0 – 400 bar |
| Temperature | 20K – 450K |
| Flow diameter | up to 20 mm |
| Media | Adaptable to all media |
| Lead times | Starting at 10 weeks from order intake (batch size dependent) |
