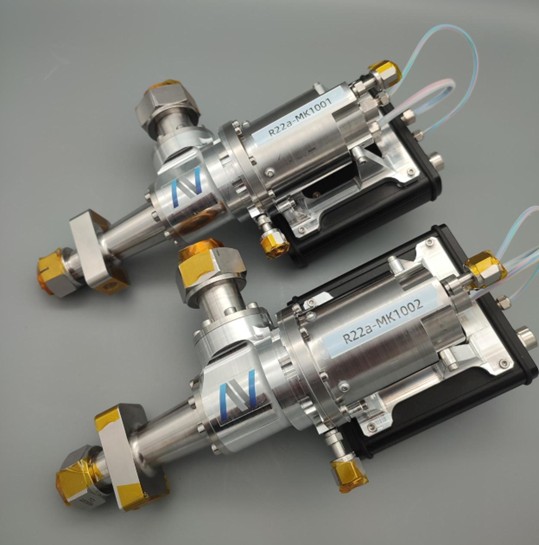

Regulation Valve

Electromotor driven valves. Your backbone for advanced fluidic systems with high precision regulation and <1s full stroke capability. Smart control unit included.

Category:

ND17

Mass 800g
Adapter 238g
Envelope 132mm x 68mm
Envelope incl. Adapter 173mm  x 68mm x 124mm
Effective Flow Area 0-180mm² / KV 9.2
MEOP 60 bar
Temperature Range 4K – 440K
Media H2, O2, CH4, N2, Helium, Xenon, MMH, N2O, H2O2
Accuracy ~1% of max effective flow area
Leakrate ~10e-2 sccm/s GHe in active mode
TRL level TRL 5



ND3

Mass 940g
Adapter 100g
Envelope 164mm x 70mm
Envelope incl. Adapter 190mm  x 70mm x 129mm
Effective Flow Area 0-2mm² / KV 0.1
MEOP 100 bar
Temperature Range 4K – 300K
Media H2, O2, CH4, N2, Helium, Xenon, MMH, N2O, H2O2
Accuracy ~1% of max effective flow area
Leakrate ~1e-3 mbarL/s GHe in active mode
TRL level TRL 4



Customized

Pressure 0 – 400 bar
Temperature 4K – 450K
Flow diameter up to 100 mm
Media H2, O2, Hydrocarbons, Hydrazine & inert fluids
Lead times 14w from PO to delivery of existing designs
6-10m from PO up to delivery for scaling to new applications, faster for prototypes
