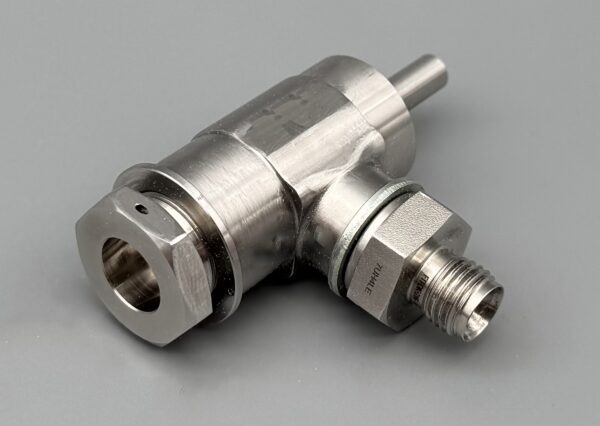

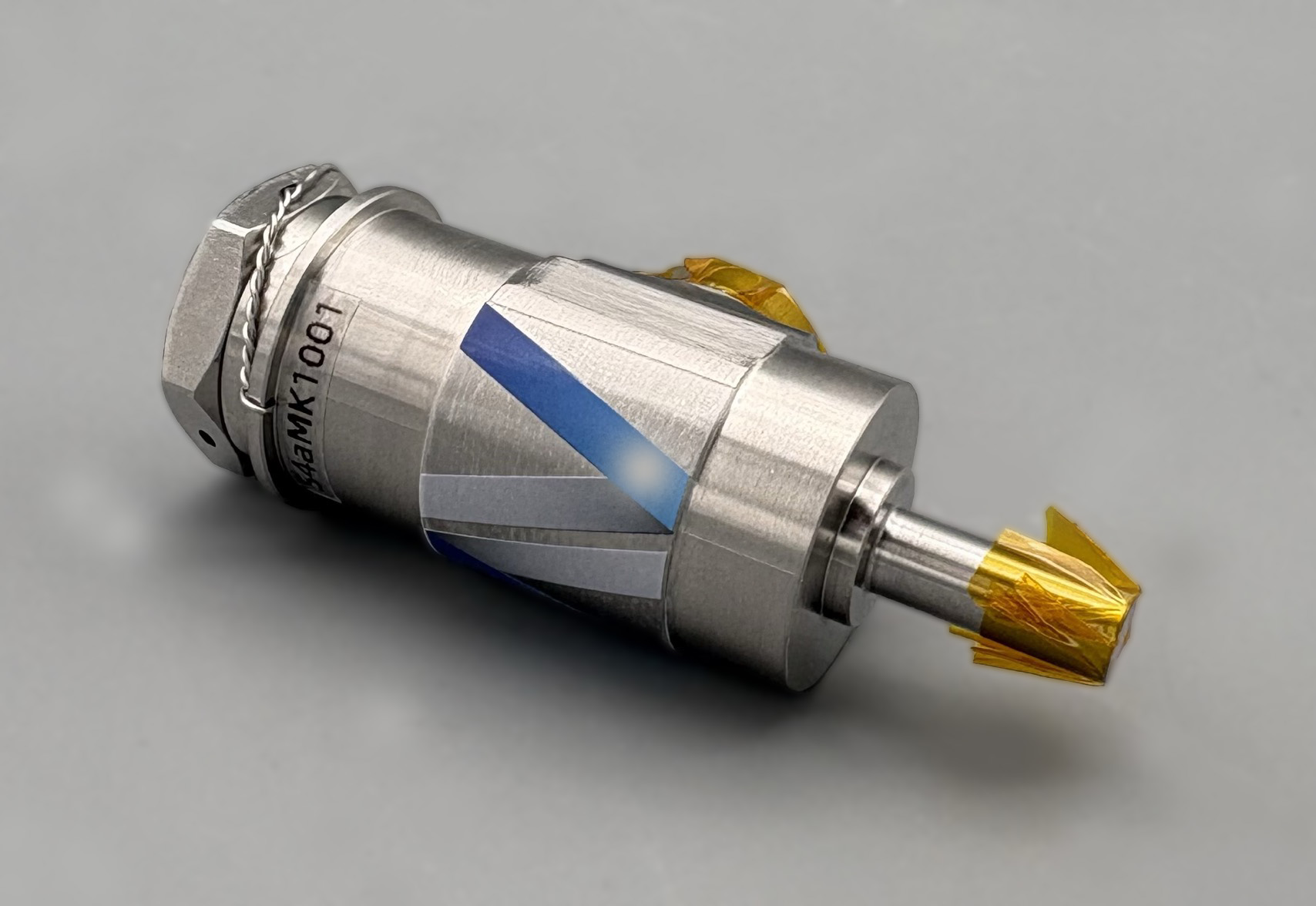

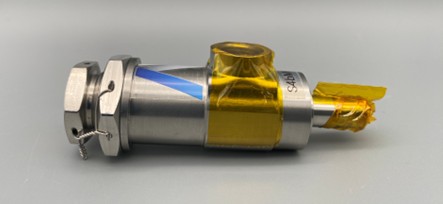

S4a
| Product | Safety Valve with double barrier (adjustable) |
| Composition | Fluid Interface Device |
| Nominal Diameter | DN4 |
| MEOP/ Proof/ Burst | >100 bar / >150 bar / >250 bar |
| Pressure Range | 20 bar – 100 bar (25, 50, 75, 100 bar shim rings) |
| Interfaces | 1/4″ Pipe End for inlet fitting and G 1/4″ female thread for outlet |
| Dimensions | 69 x 31 x 26 mm |
| Mass | 150 g |
| Temperature range | 248K to 398K (application dependent) |
| Leak barriers | double leak barrier |
| Media | Inert media, Hydrocarbons, H2, O2 Optional: Storables, N2O, HTP (short term) |
| Leakrate | <1e-2 Helium @293K and 25bar |
| TRL level | TRL5 |
