Check Valves serve the purpose of allowing fluid flow in only one direction, thereby preventing any backflow.

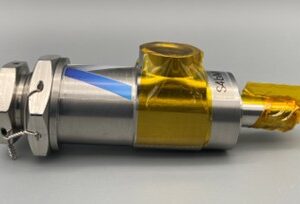

Check Valve
C2a
| Product | CV with double barrier |
| Composition | Fluid Interface Device |
| Nominal Diameter | DN2 – Kv 0.2 (m³/h) |
| MEOP/ Proof/ Burst | >350 bar / >525 bar / >875bar |
| Interfaces | 1/4″ Pipe Ends |
| Dimensions | 70 x 19.63 x 19.63 mm |
| Mass | 62 g |
| Temp range | 248K to 398 K (-25°C to 125°C) |
| Leak barriers | double leak barrier |
| Media | GH2 |
| External Leakrate | <10^-6 Helium @293K and 25bar |
| Internal Leakrate | <10^-4 Helium @293K and 25bar |
| TRL level | TRL4 |
