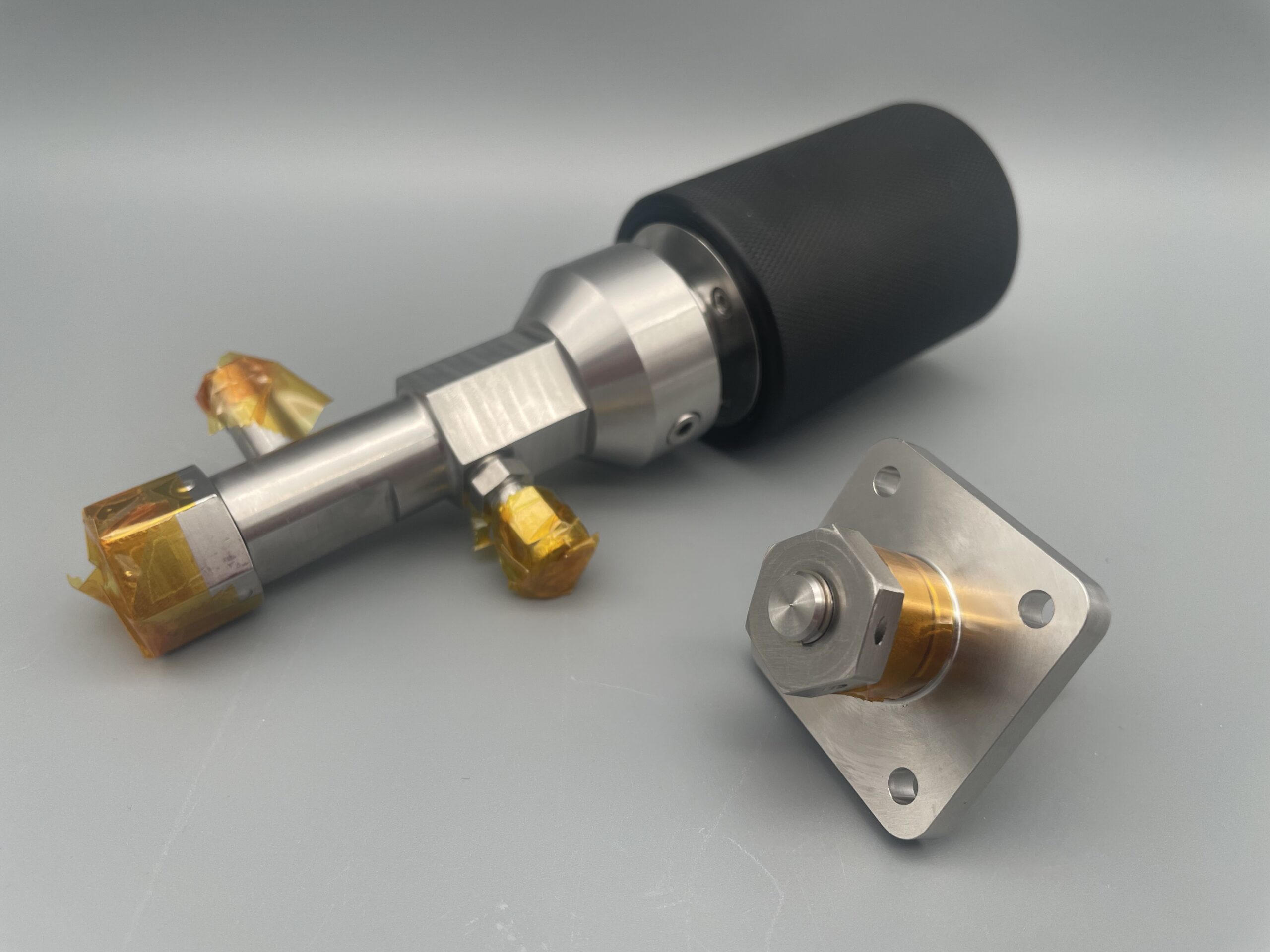

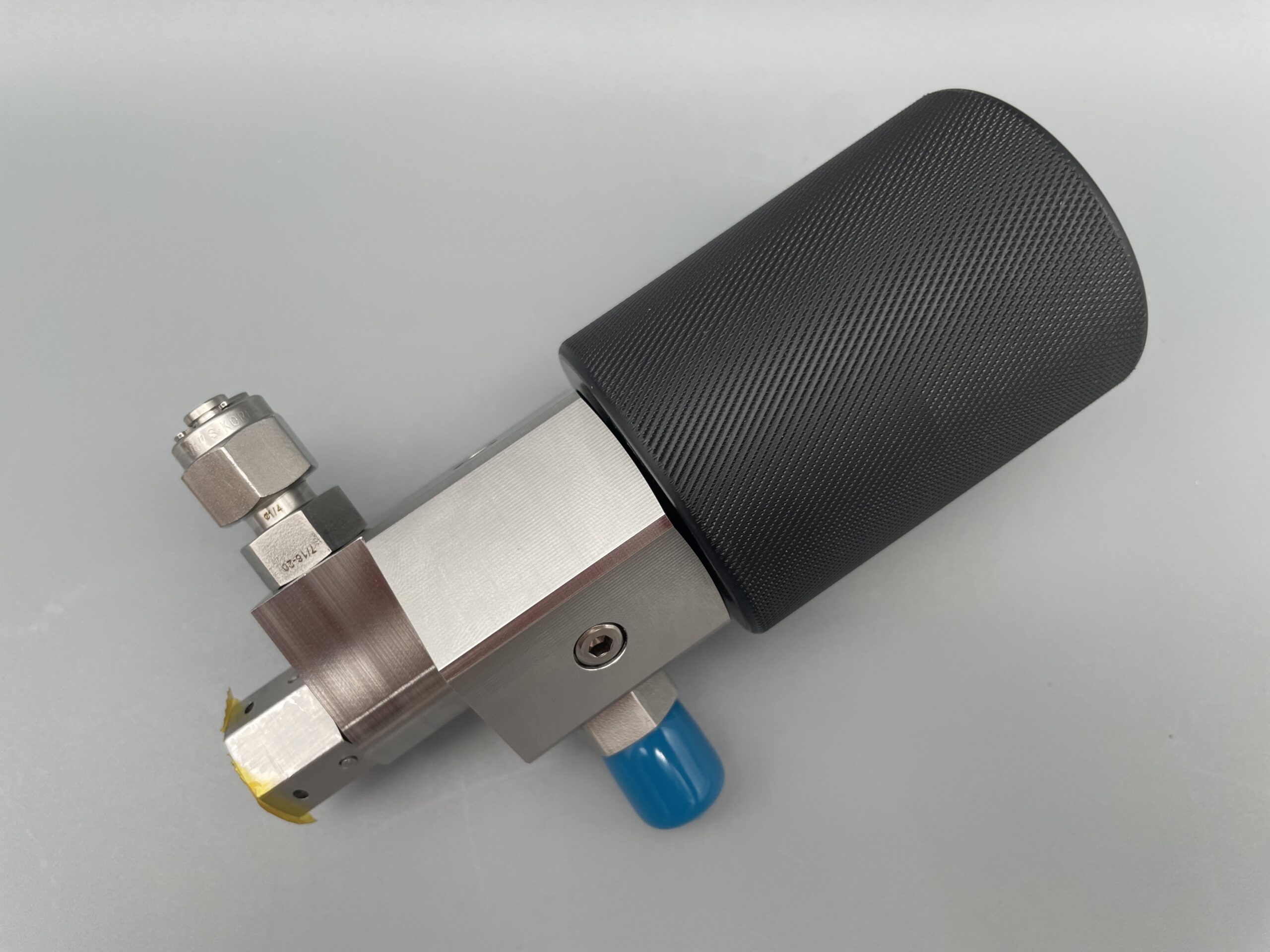

Fill and Drain / Vent valves serve for the loading and venting functions of all kinds of propellants, pressurants and propellant vapours.
 |
 |
| Operating Pressure | up to 240 bar |
| Proof Pressure | up to 360 bar |
| Temperature | 233K – 343K (application dependent) |
| Dimensions | 20 x 20 x 20 mm |
| Nominal diameter | 2 mm |
| Product Composition | Fill and Drain Valve including cap for double leak barrier & Ground Coupling Device |
| Weight | 22 g incl. cap (flight part) |
| Media | Inert media, H2, O2, Hydrocarbons Optional: N2O, HTP, Storables |
| Maturity | TRL 5 |
| Lead times | Starting at 10 weeks from order intake (batch size dependent) |
 |
 |
| Operating Pressure | up to 70 bar |
| Proof Pressure | up to 105 bar |
| Temperature | 233K – 343K (application dependent) |
| Dimensions | 50 x 50 x 50 mm |
| Nominal diameter | 4 mm |
| Product Composition | Fill and Drain Valve including cap for double leak barrier + Ground Coupling Device |
| Weight | 110 g incl. cap (flight part) |
| Media | Inert media, H2, O2, Hydrocarbons Optional: N2O, HTP, Storables |
| Maturity | TRL 5 |
| Lead times | Starting at 10 weeks from order intake (batch size dependent) |
| Temperature | 20K – 343K |
| Product Composition | Fill and Drain Valve including cap for double leak barrier + Ground Coupling Device |
| Media | Adaptable to all media |
| Maturity | TRL 4 |
| Lead times | Starting at 10 weeks from order intake (batch size dependent) |
